CU160iN CU Model Series
Select a thumbnail to view a larger version
Commercial condensing tankless water heater CU160iN from Rinnai is precision engineered to provide endless hot water for the most demanding of applications such as restaurants, hospitality, education institutions, multifamily residential buildings and more. CU160iN is designed for indoor installation, natural gas fuel, is WiFi ready to monitor performance accross multiple units to ensure up time is maintained. Multiple venting options offer installation flexibility to meet your existing layout or for new build optimization.
- 97% Thermal Efficiency
- Warranty 8 yrs or 12K hours on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,000 BTU (minimum)
160,000 BTU (maximum)
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Product Depth | 11.45 in / (290 mm) |
|---|---|
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 62 lb / (28 kg) |
| Gas Type | Natural Gas |
| Recirculation Capable | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 9 GPM / (34.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
VERSION 5 UBBINK INSTRUCTIONS FOR FLEX VENT KITPDF 2 MB -
Sensei Conversion Manual - RU/CU/RURPDF 3 MB -

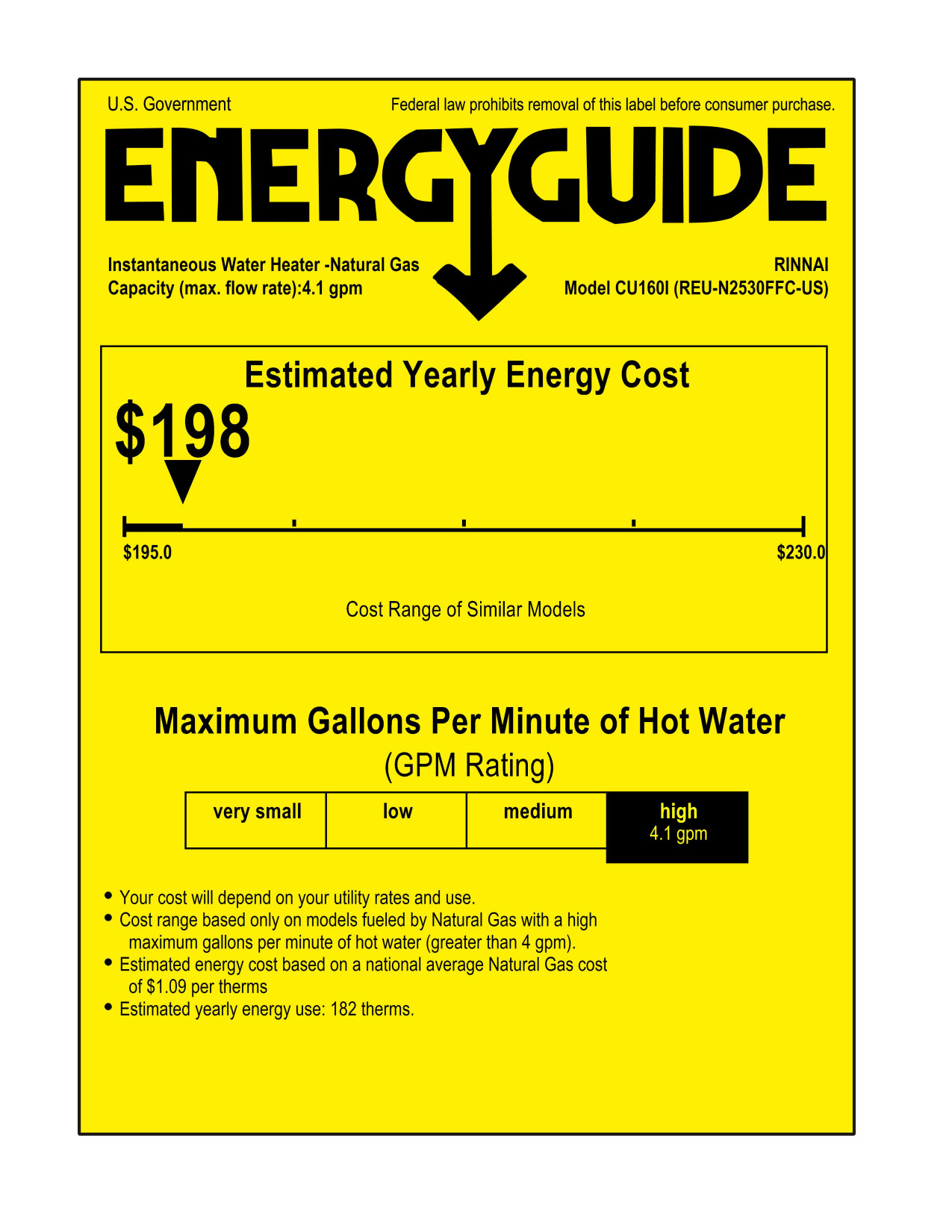

Energy Guide - CU160iNPDF 887 KB -
Brochure Circ Logic Guide - CU/RU/RL/RLXPDF 2 MB
N Series Commercial Condensing Installation And Operation Manual - CUPDF 8 MB
Commercial Condensing Installation And Operation Manual - CUPDF 8 MB
N Series Commercial Condensing Installation And Operation Manual - CU ModelsPDF 8 MB -
@small.jpg)
Commercial Water Heating Solutions - RE/REP/CU/RSCPDF 4 MB
Commercial WH Solutions Brochure_Installers.pdfPDF 6 MB -
-CU160i-N Engineering Specification@small.jpg)

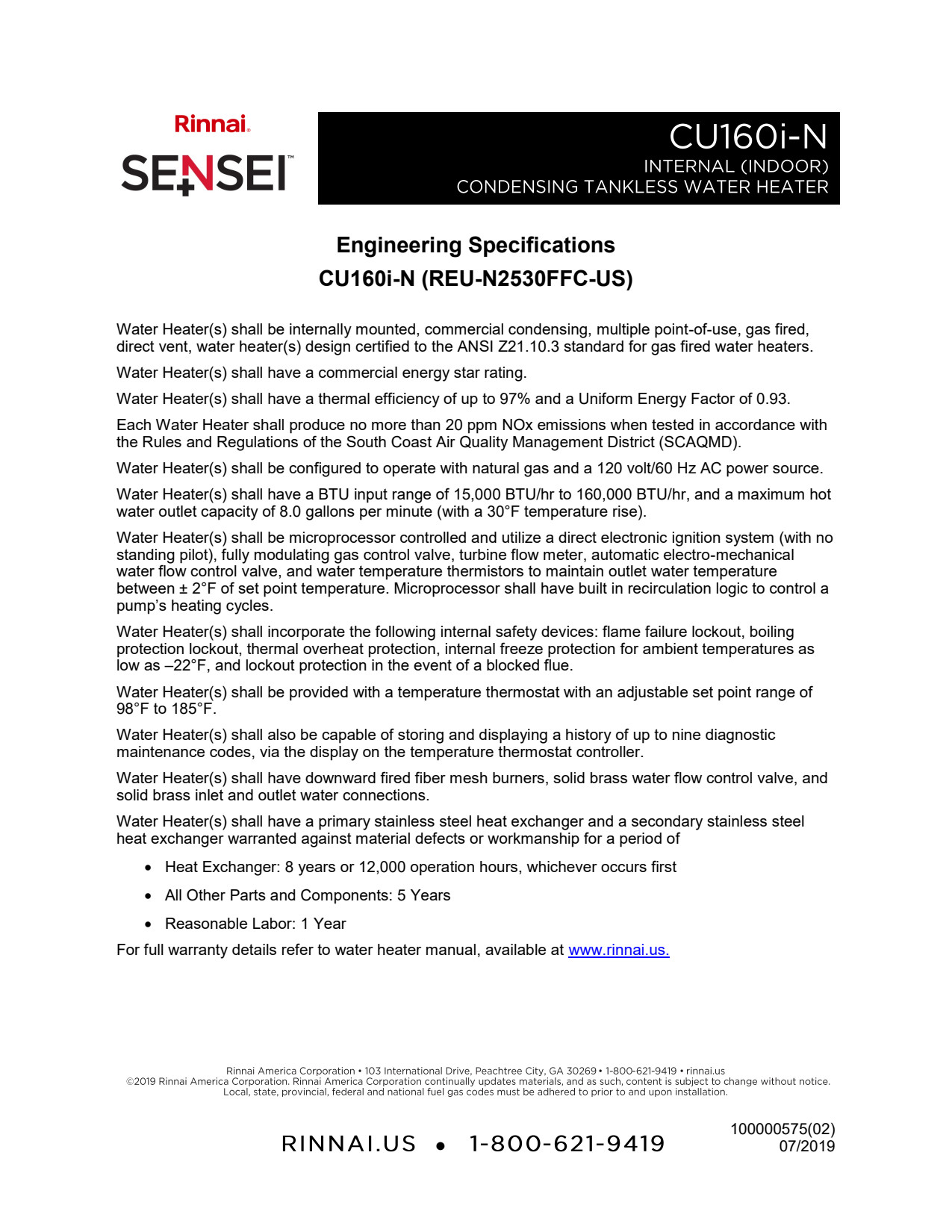

Engineering Specification -CU160iNPDF 264 KB
