RUR199eN RUR Model Series
Select a thumbnail to view a larger version

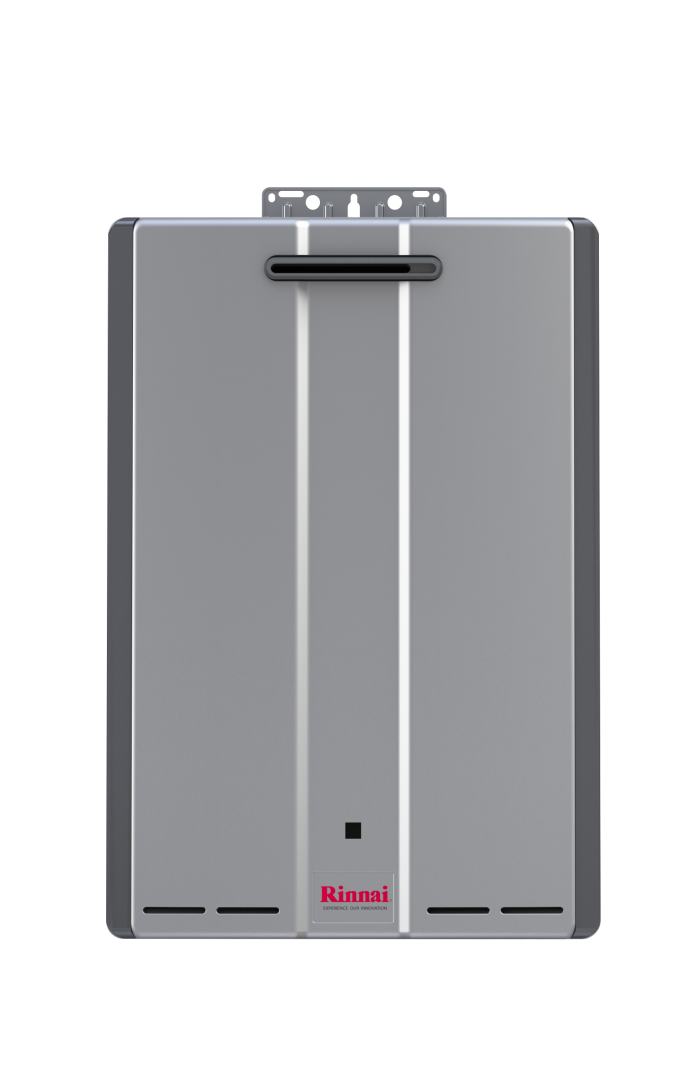

Enjoy an endless supply of hot water with the SENSEI™ RUR199eN Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the natural gas RUR199eN model is compact, easy-to-install and perfect for outdoor locations.
- Uniform Energy Factor (UEF): 0.93
- Warranty 15 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,000 BTU (minimum)
199,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Product Depth | 12.0 in / (305 mm) |
|---|---|
| Product Height | 27.9 in / (709 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 73 lb / (33 kg) |
| Gas Type | Natural Gas |
| Installation Type | Outdoor |
| Recirculation Capable | Yes |
| Residential ENERGY STAR® | Yes |
| Uniform Energy Factor (UEF) | 0.93 |
| Domestic Hot Water Flow Rate (Maximum) | 11 GPM / (41.6 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
VERSION 5 UBBINK INSTRUCTIONS FOR FLEX VENT KITPDF 2 MB -
Sensei Conversion Manual - RU/CU/RURPDF 3 MB -

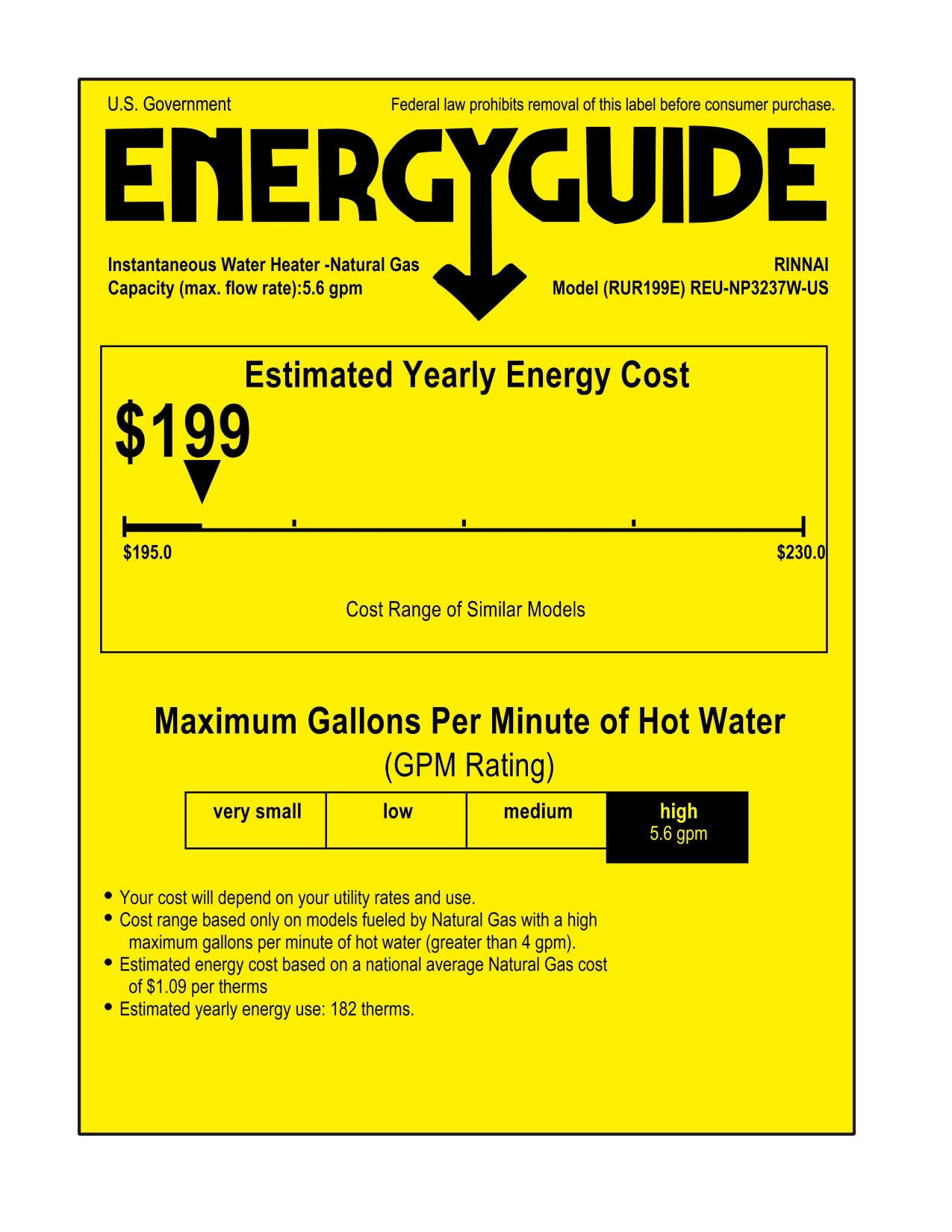

Energy Guide - RUR199eNPDF 890 KB -
N Series Residential with Pump SENSEI Installation Manual (French) - RUR199/RUR160PDF 10 MB
N Series Residential with Pump SENSEI Installation Manual (Spanish) - RUR199/RUR160PDF 10 MB
N Series Residential with Pump SENSEI Tankless Water Heater (English)PDF 7 MB Installation Manual@small.jpg)
Tankless Rack System (TRS) Installation Manual EnglishPDF 7 MB -
Rinnai_SENSEI_Brochure_LR_R-TR-WH-E-08r2.pdfPDF 33 MB
GROUND WATER TEMPERATURE MAP UPDATE RUR199I_RUR199EPDF 318 KB
Condensing Group Water Temperature Guide US and CanadaPDF 1 MB -
Ultra Condensing Series Pipe Cover Specification SheetPDF 370 KB
RGB-CTWH-4 Specification SheetPDF 517 KB

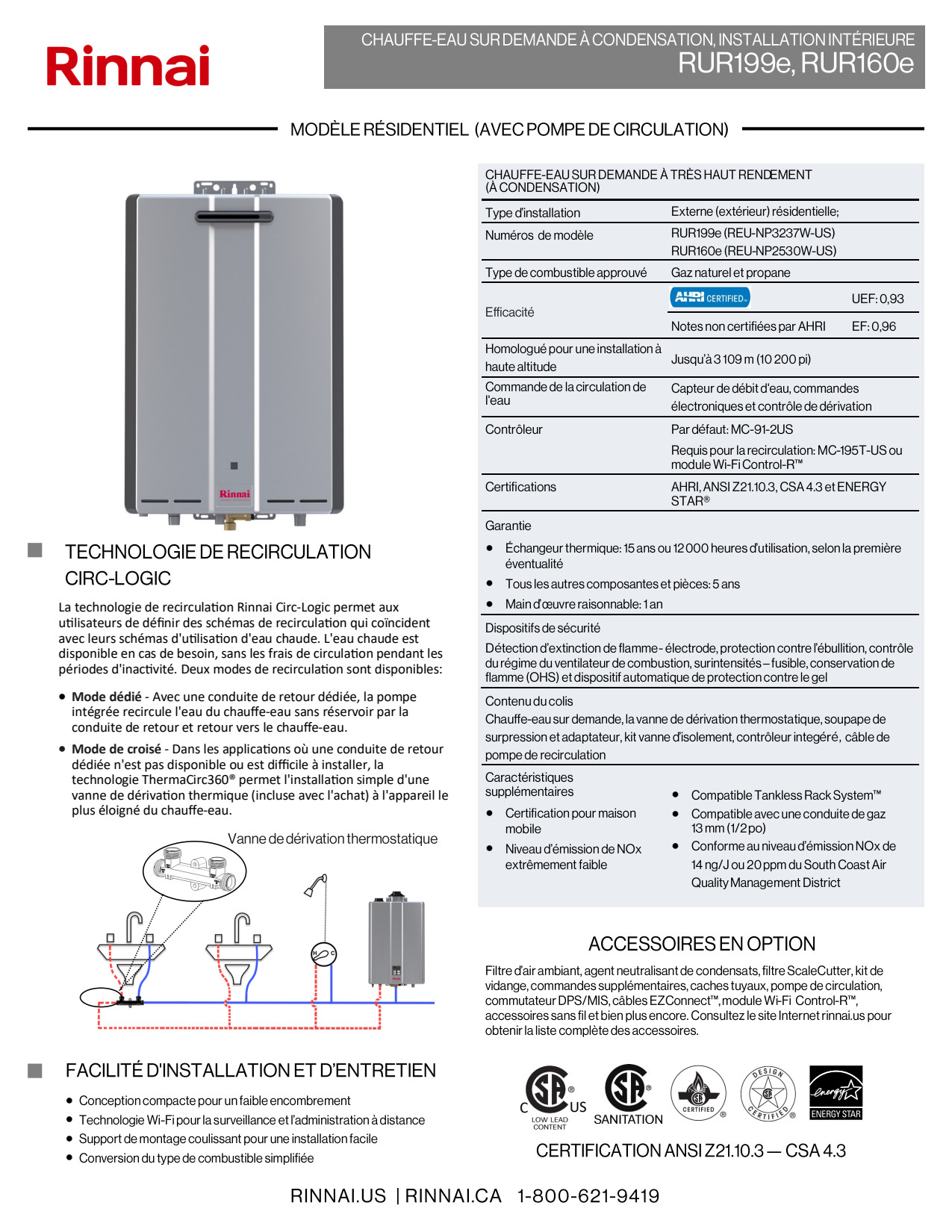

Spec Sheet: N Series (SENSEI) Condensing Residential with Pump Outdoor- RUR160e/RUR199e (French)PDF 1 MB

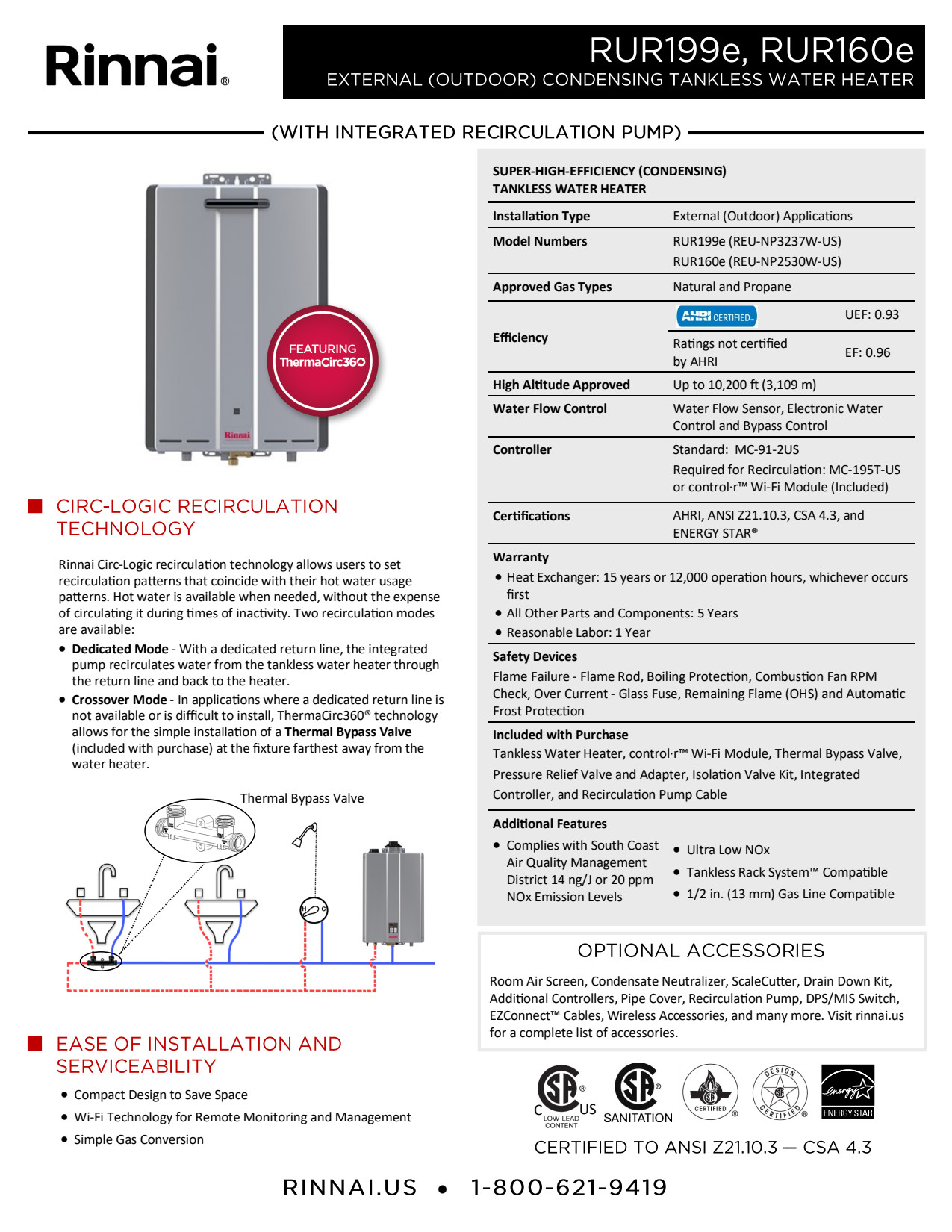

N Series (SENSEI) Condensing Residential with Pump Outdoor Spec Sheet English - RUR160e/RUR199ePDF 0 MB@small.jpg)
Tankless Rack System Specification Sheet EnglishPDF 4 MB
TRS SPEC SHEET EnglishPDF 4 MB -
Tech Bulletin No 130: Battery Backup for Tankless Water Heaters and Home Heating Products (TB-130)PDF 285 KB
Tech Bulletin No 146: Connect Control-R Wi-Fi Module to SENSEI Water Heaters (TB-146)PDF 756 KB
Tech Bulletin No 150: Understanding EF and UEF (TB-150)PDF 197 KB
Tech Bulletin No 156: GTK15 Recirculation Pump with SENSEI Water Heaters (TB-156)PDF 637 KB
Tech Bulletin No 159: SENSEI CSA Certification and ULC S636 PVC Venting (TB-159)PDF 225 KB
Tech Bulletin No 163: New Isolation Valve Design for Tankless Water Heater EnglishPDF 517 KB
Tech Bulletin No 166: Updates to PC Board Ignition Sequence (TB-166)PDF 259 KB
Tech Bulletin No 172: Rinnai Natural Gas-Hydrogen Fuel Mixture Products (TB-172)PDF 279 KB
SENSEI VERSION 6 SOFTWARE UPDATESPDF 495 KB
MSDS Higher Vinegar Concentration for Descaling Technical BulletinsPDF 417 KB
Sensei Enhanced Flush Procedure - RU/RSC/RURPDF 207 KB -
N SERIES - Residential Technical Data Sheet With Pump - Ru ModelsPDF 5 MB
Next Gen Check Sheet EnglishPDF 1 MB
Sensei Technical Data Sheet - RUR/RSC/CUPDF 1 MB
EZ-2 CONNECT INSTRUCTIONS - CU/RSC/RUPDF 2 MB@small.jpg)
SENSEI REPLACEMENT INSTRUCTIONS - RU/CU/RSC/RURPDF 2 MB@small.jpg)
TWH Troubleshooting Technical Data SheetPDF 2 MB
TWH Troubleshooting Technical Data Sheet FrenchPDF 2 MB -
System Design Drawing: Condensing Tankless with Built-In Pump Two Unit RUR Crossover Circulation (CAD format)DWG 750 KB
System Design Drawing: Condensing Tankless with Built-In Pump Two Unit RUR Crossover CirculationPDF 725 KB
System Design Drawing: Condensing Tankless with Built-In Pump Two Unit RUR Circulation (CAD format)DWG 707 KB
System Design Drawing: Condensing Tankless with Built-In Pump Two Unit RUR CirculationPDF 726 KB
System Design Drawing: Condensing Tankless with Built-In Pump Three Unit RUR Crossover Circulation (CAD format)DWG 0 MB
System Design Drawing: Condensing Tankless with Built-In Pump Three Unit RUR Crossover CirculationPDF 732 KB
System Design Drawing: Condensing Tankless with Built-In Pump Three Unit RUR Circulation (CAD format)DWG 0 MB
System Design Drawing: Condensing Tankless with Built-In Pump Three Unit RUR CirculationPDF 734 KB
System Design Drawing: Condensing Tankless with Built-In Pump Single Unit Freeze ProtectionPDF 717 KB
System Design Drawing: Tankless Rack System with Built-In Pump Two Unit RUR Crossover CirculationPDF 763 KB
System Design Drawing: Tankless Rack System with Built-In Pump Two Unit RUR CirculationPDF 766 KB
System Design Drawing: Tankless Rack System with Built-In Pump Three Unit RUR Crossover CirculationPDF 896 KB
System Design Drawing: Tankless Rack System with Built-In Pump Three Unit RUR CirculationPDF 783 KB
System Design Drawing: Rinnai Tankless Single Unit with Backup Storage (CAD format)DWG 320 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump Circulation (CAD format)DWG 337 KB
System Design Drawing: Rinnai Tankless Single Unit with Circulation (CAD format)DWG 403 KB
System Design Drawing: Rinnai Tankless Single Unit with CirculationPDF 718 KB
System Design Drawing: Rinnai Tankless Single Unit with Circ Logic Pump (CAD format)DWG 223 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup Storage (CAD format)DWG 432 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump Circulation (CAD format)DWG 689 KB
System Design Drawing: Rinnai Tankless Two Unit with Circulation (CAD format)DWG 688 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup Storage (CAD format)DWG 544 KB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump Circulation (CAD format)DWG 0 MB
System Design Drawing: Rinnai Tankless Three Unit with Circulation (CAD format)DWG 902 KB
System Design Drawing: Rinnai Tankless Single Unit with Air Handler (CAD format)DWG 435 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat Exchanger (CAD format)DWG 419 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1 (CAD format)DWG 427 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2 (CAD format)DWG 447 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating (CAD format)DWG 423 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1 (CAD format)DWG 766 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2 (CAD format)DWG 748 KB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2 (CAD format)DWG 1 MB -
_Warranty_SENSEI Residential@small.jpg)
Sensei Residential Warranty - EnglishPDF 219 KB
Sensei Residential Warranty - EnglishPDF 219 KB
SENSEI Residential Warranty - FrenchPDF 259 KB
SENSEI Residential Warranty - SpanishPDF 250 KB
Warrantyi
| Warranty - Standard for Residential | 15 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
|---|---|
| Warranty - Standard for Commercial | 8 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
iWarranty information is available in the Installation & Owner Manual.
